KTM 85 fork brake/wheel adapter kit for stock wheels and brakes

PRODUCT OVERVIEW

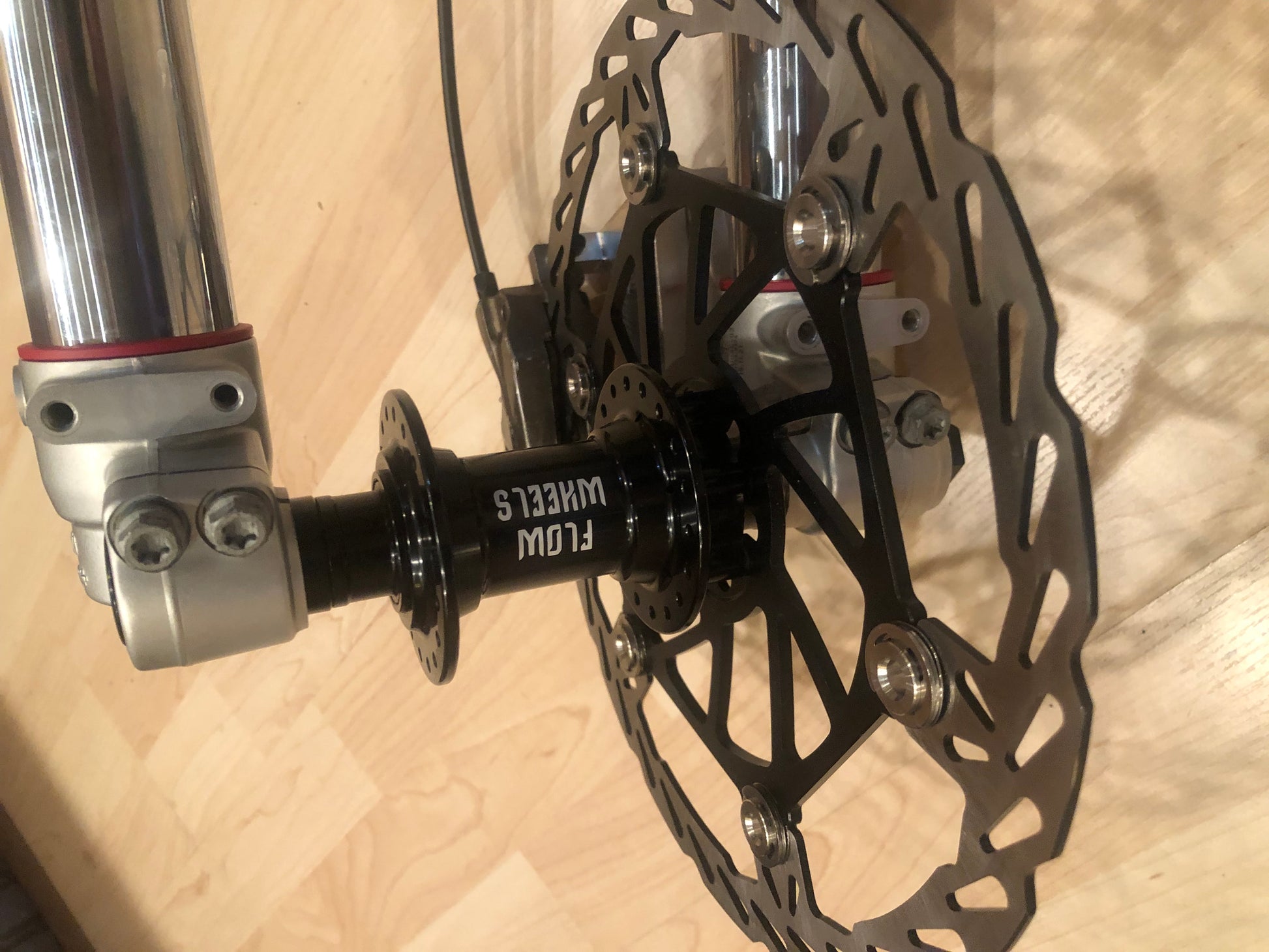

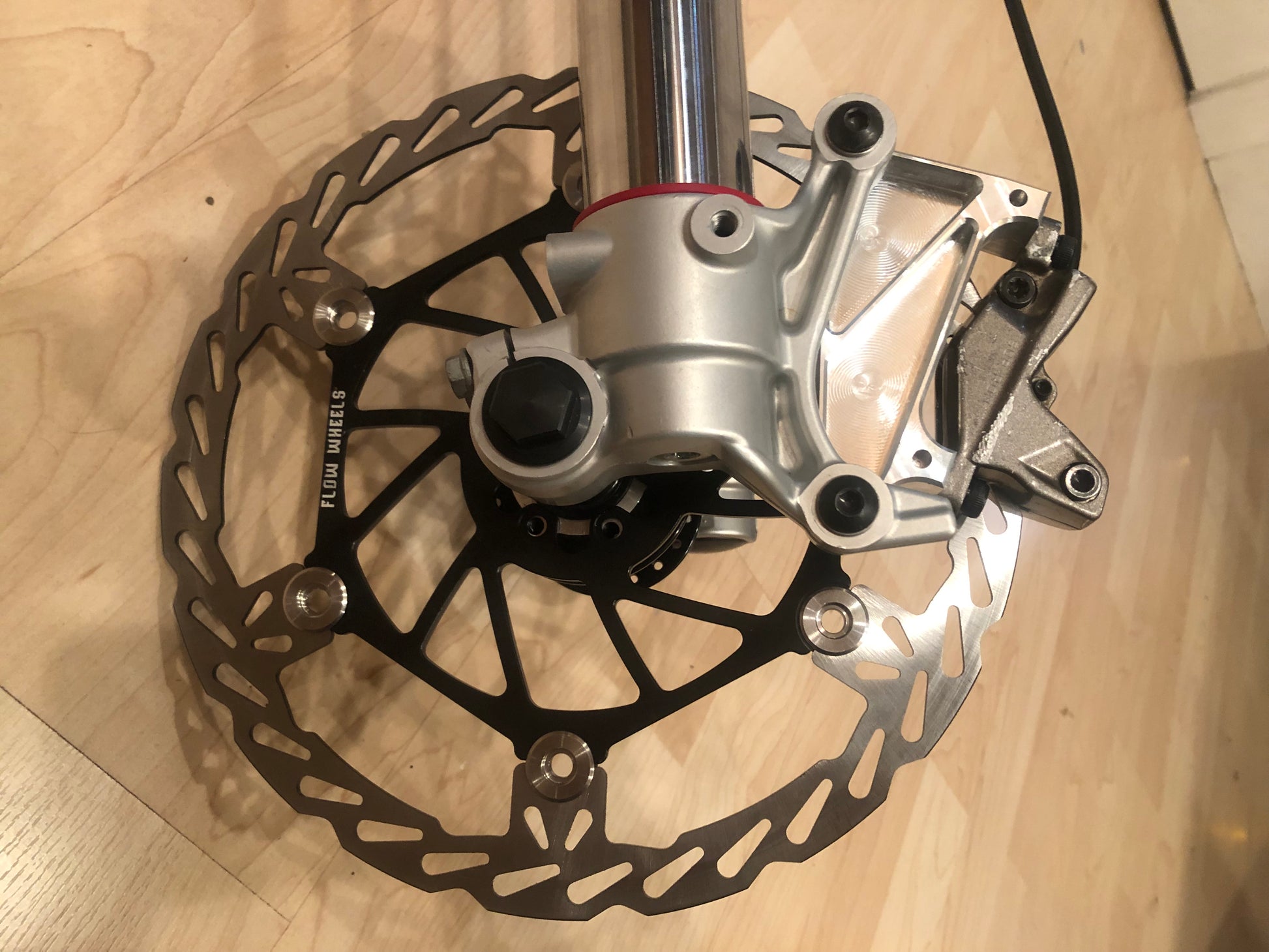

This KTM 85 fork adapter kit is designed for riders converting to 2021 or newer KTM 85 forks while keeping their existing front wheel assembly and brake setup instead of switching to a complete KTM front-end system.

A typical KTM 85 fork conversion requires a KTM hub, wheel, brake disc, brake caliper, and Brembo brake components. This kit simplifies the conversion by allowing the existing front wheel and brake assembly to remain in use, with the included rotor and adapter components handling the required fitment changes.

KEY FEATURES & SPECIFICATIONS

• Compatible with 2021 or newer KTM 85 forks

• Allows use of the existing front wheel assembly

• Allows use of the existing brake assembly, excluding the original rotor

• 250 mm floating brake rotor

• CNC floating rotor design

• Thicker rotor construction than typical mountain bike rotors

• Billet aluminum brake caliper adapter

• Aluminum axle and bushing

• Plug-and-play installation

• Designed to reduce the number of KTM-specific parts required for the conversion

• Compatible with mountain bike brake systems

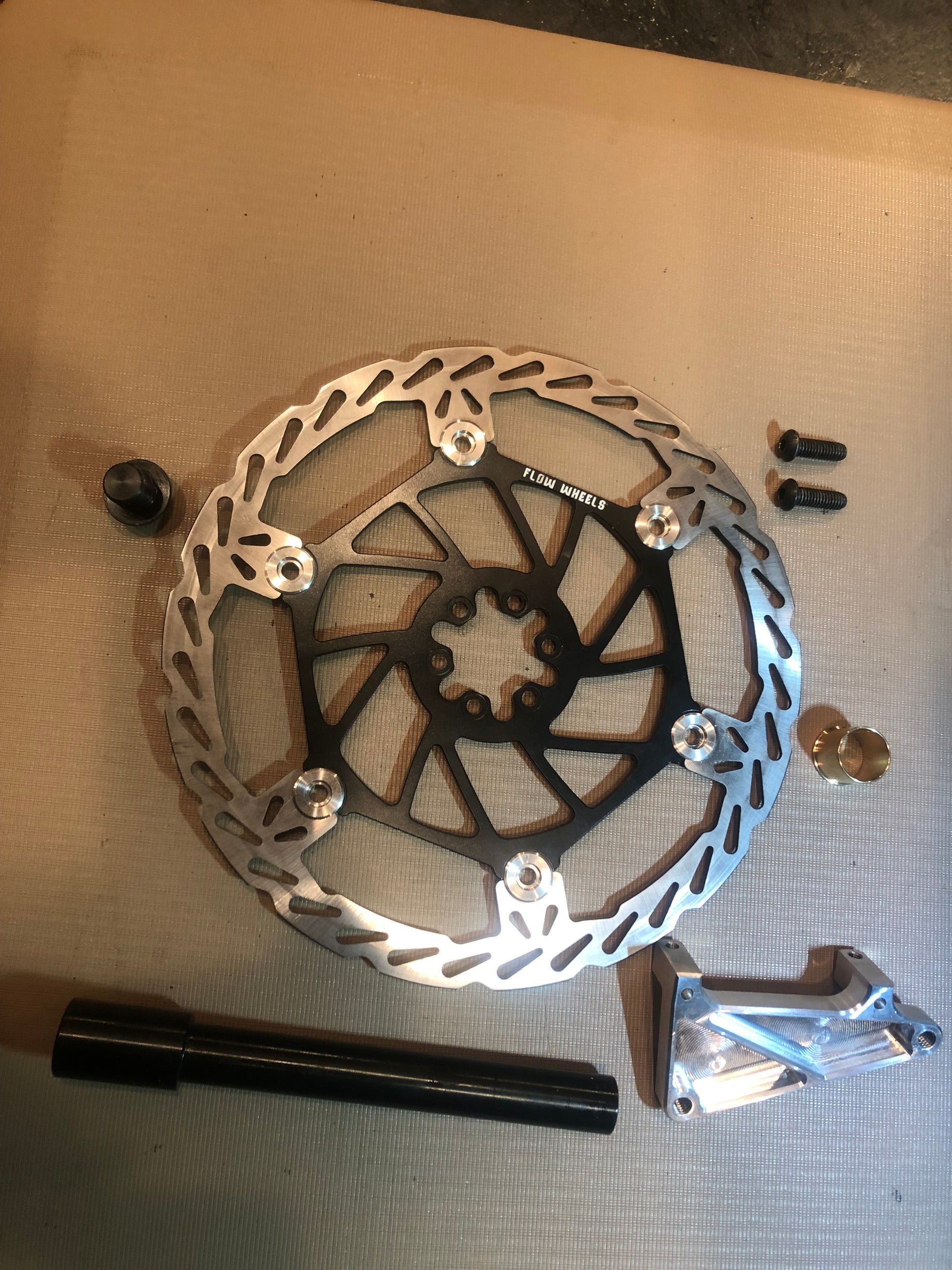

WHAT'S INCLUDED

• Aluminum axle

• Axle bushing

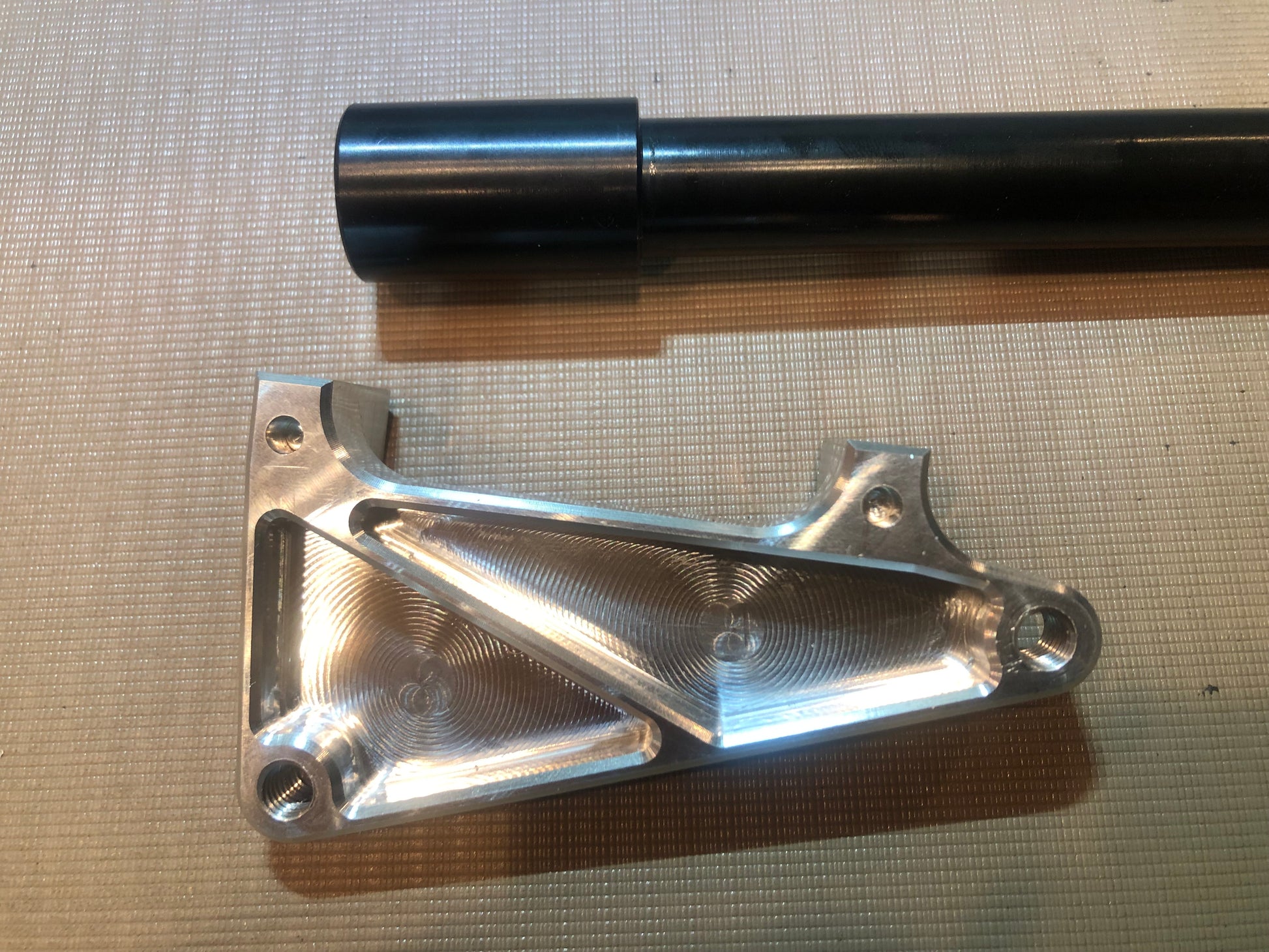

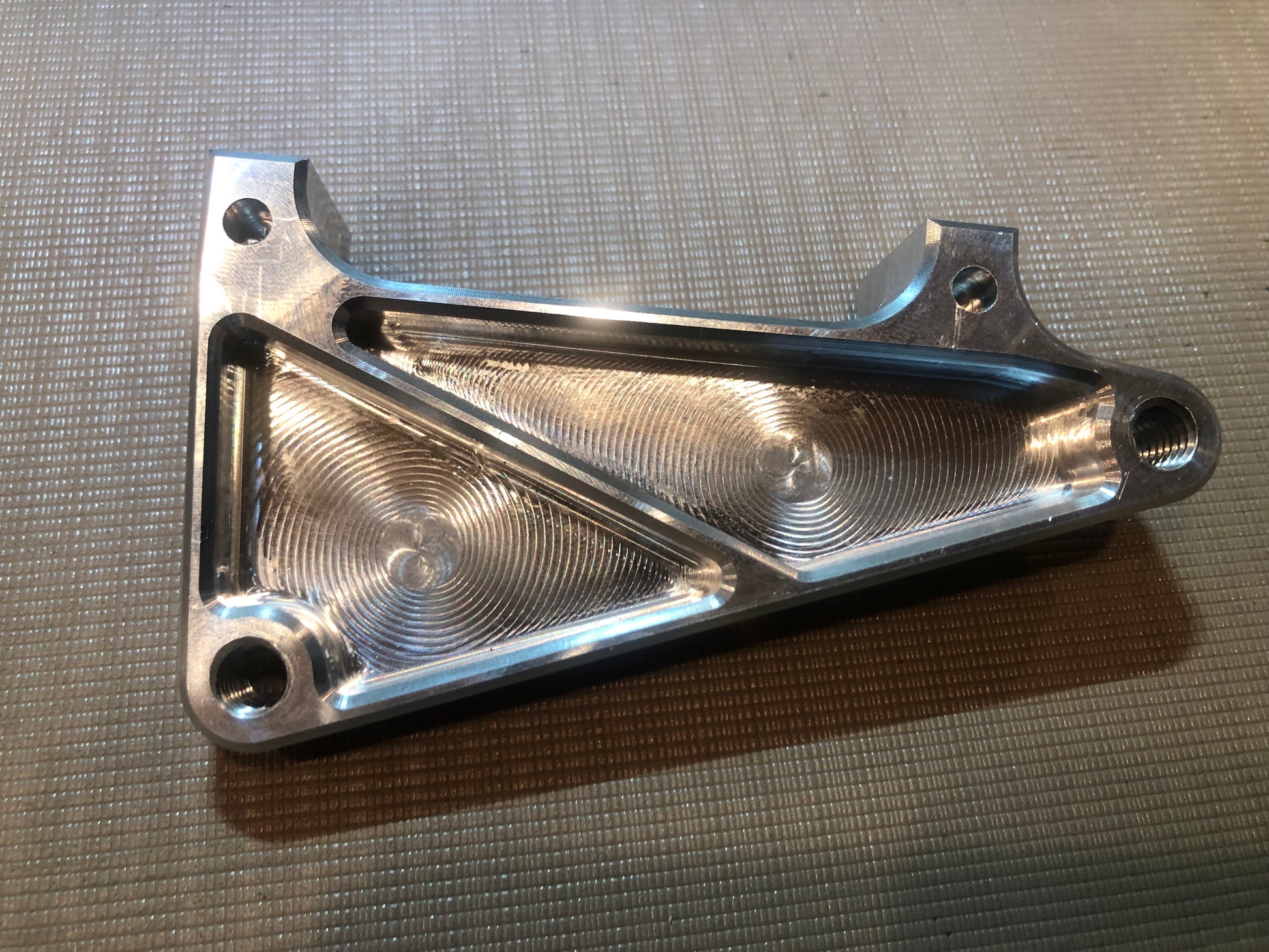

• Billet aluminum brake caliper adapter

• 250 mm floating brake rotor

• Caliper adapter mounting bolts

COMPATIBILITY

This kit is designed specifically for KTM 85 forks manufactured in 2021 or later.

It allows riders to retain their existing front wheel assembly and existing brake assembly, with the original rotor replaced by the included 250 mm floating rotor.

BRAKING SETUP

The included 250 mm floating rotor is larger than a typical 220 mm rotor and uses a thicker disc construction.

The increased rotor diameter provides greater braking leverage, while the thicker floating disc is designed to dissipate heat more effectively and reduce the likelihood of overheating and rotor warping during demanding use.

21" FRONT WHEEL OPTION

The adapter kit also makes it easier to use a 21" front wheel with the KTM 85 fork conversion because the rider does not need to source a KTM-specific 21" wheel and hub assembly.

Flow Wheels currently offers a $40 discount on one of its 21" front wheels when purchased with this adapter kit.

BEST FOR

• KTM 85 fork conversions

• Riders wanting to retain their existing front wheel

• Riders wanting to retain their existing brake assembly

• 21" front wheel builds

• Riders looking to reduce KTM-specific conversion parts

• Builds focused on lowering front-end weight compared with a complete KTM wheel and brake conversion
